Garage Wall Brackets — Shelf, Angle & SteadyRack Plate Options

Brackets sit in a different category to hooks. Where hooks hang items from a single point, brackets support items from below — creating a platform, cradle, or shelf surface. They're the right solution for items too large or heavy to hang from a hook, and for building customisable shelving anywhere on your slatwall panels without drilling a single hole in the wall.

StoreWALL's bracket range covers four distinct bracket types: standard shelf brackets (254mm and 381mm), angle brackets (254mm and 381mm) for large sporting equipment, SteadyRack mounting plates for no-drill bike storage, and the 381mm padded brackets used for horizontal bike storage. Every bracket is powder-coated steel, CamLok-locked, and repositionable on your panels at any time.

Understanding the Difference — Shelf Brackets vs Angle Brackets

The most common source of confusion in this category is the difference between the standard shelf bracket and the angle bracket. They look similar, but they function differently and suit different applications:

Standard Shelf Brackets (254mm and 381mm)

Standard shelf brackets project horizontally from the wall at 90 degrees — creating a flat support platform. Two brackets side by side (minimum) form the support structure for a shelf. The top surface is flat, pre-drilled for shelf attachment, and compatible with StoreWALL's pre-cut floating shelves or any custom-cut shelf timber or board. Use these whenever you're building a shelf.

Angle Brackets (254mm and 381mm)

Angle brackets project from the wall at an upward angle — they're not flat platforms. This angled profile is intentional: it cradles large, bulky items like kayaks, surfboards, paddleboards, and oversized timber by supporting them on the angled face rather than sitting flat on top. Both angle bracket sizes are lined with closed-cell foam strips to protect the stored item. Use these for large sporting equipment and oversized items — not for shelves.

Standard Shelf Brackets — 254mm and 381mm

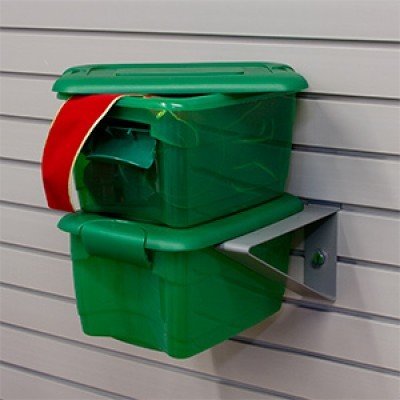

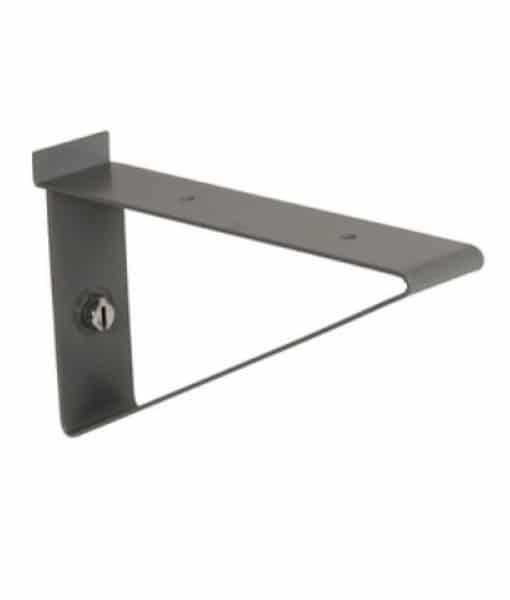

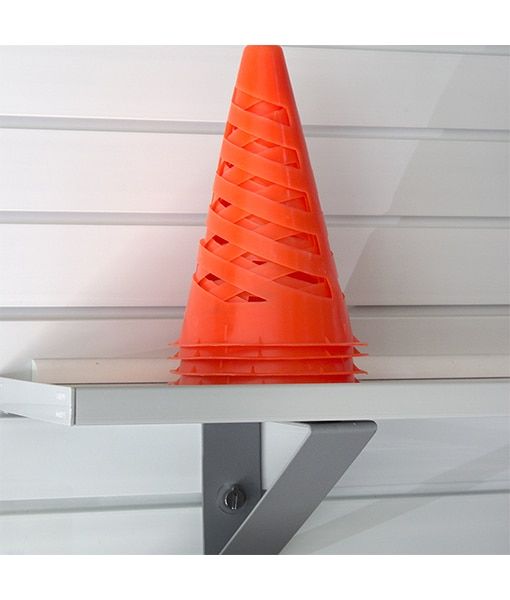

254mm Shelf Bracket — 34kg per bracket, 68kg per pair

The 254mm bracket is StoreWALL's standard shelf depth — projecting 254mm from the wall face with a flat top surface pre-drilled for shelf attachment. At 34kg per bracket (68kg per pair with InstallStrips), it handles most residential shelving applications: storage containers, toolboxes, sports gear, paint tins, and heavy bins.

Best for: most garage shelf installations where a standard shelf depth is sufficient. The most popular bracket size for general storage.

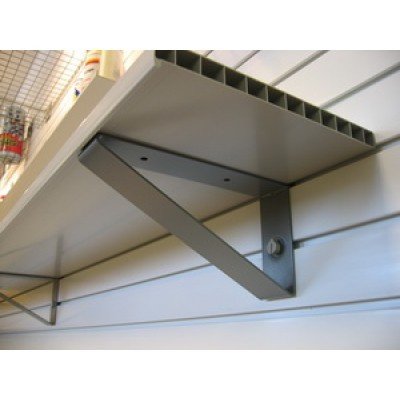

381mm Shelf Bracket — 34kg per bracket, 68kg per pair

The 381mm bracket provides a deeper shelf platform — 381mm from the wall face. Same weight rating as the 254mm (34kg per bracket, 68kg per pair with InstallStrips), but with more shelf depth for larger items that overhang a 254mm bracket. Useful when you're storing deeper items like large storage containers, tubs, or items that need additional support further from the wall.

Best for: deeper shelving applications, larger storage containers, or when you want a more substantial shelf appearance. Also used for horizontal bike storage — see the Bike Brackets section below.

How Many Brackets Do You Need?

The minimum is 2 brackets per shelf. For shelf spans wider than 900mm, add a third bracket in the centre to prevent shelf sag under load. As a general guide:

• Up to 600mm shelf width: 2 brackets
• 600mm–1200mm shelf width: 2 brackets (centre bracket recommended for heavier loads)
• Over 1200mm shelf width: 3 brackets minimum

Brackets are sold individually — order the quantity you need for your planned shelf layout.

The BracketPacket — Add-On for Secure Shelf Installation

Each bracket comes with an optional BracketPacket: a small kit containing non-slip rubber discs and shelf clips that secure your shelf to the bracket. The non-slip discs prevent the shelf from shifting, and the clips lock the shelf to the bracket face so it can't be accidentally lifted off. For any shelf that will carry significant weight or be accessed regularly, the BracketPacket is strongly recommended. Available as an add-on at the product level.

Angle Brackets — 254mm and 381mm

Angle brackets are specifically designed for large, bulky, or awkwardly shaped items that can't be hung from a hook or stored flat on a shelf. The angled profile cradles the item rather than creating a flat support surface. Both sizes are padded with closed-cell foam strips to protect the stored item from scratching or pressure marks.

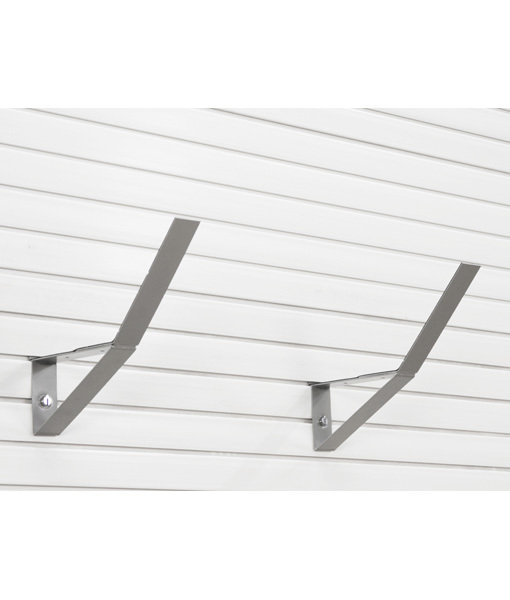

254mm Angle Bracket — 68kg capacity per pair, extends 430mm from wall

The 254mm flat dimension projects to 430mm from the wall face when installed (due to the angle). The bracket is 50mm wide and 300mm in height from lowest to highest point. At 68kg capacity per pair with InstallStrips, it handles lighter kayaks, smaller paddleboards, suitcases, short lengths of timber, and ski/snowboard bags.

Best for: youth kayaks (approx. 8–12kg), suitcases, skis, snowboards, paddleboards under 15kg, and short timber lengths. For heavier adult kayaks, consider the 381mm Angle Bracket.

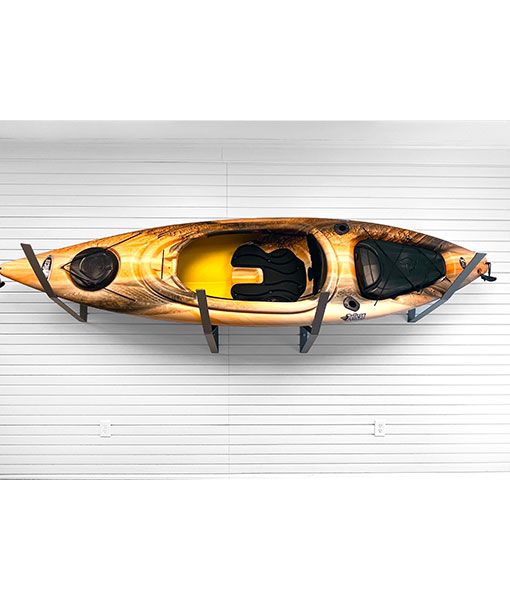

381mm Angle Bracket — 68kg capacity per pair, extends 647mm from wall

The 381mm flat dimension projects to 647mm from the wall face when installed. The bracket is 50mm wide and 450mm in height. The extra depth and height make it the right choice for full-size adult kayaks, canoes, surfboards, and wide or heavy items that the 254mm bracket can't fully support.

Best for: adult kayaks (typically 17–20kg, 66cm wide), full-size surfboards, canoes, large paddleboards, and oversized timber or piping. The additional depth (647mm from wall) means the item being stored needs adequate clearance in front of the wall — factor this into your garage layout before installing.

Important: Angle Brackets Require a Slight Lift to Remove Items

Because the brackets are angled, stored items need to be lifted slightly over the bracket edge to be removed. This is manageable for most people and most items, but worth considering for very heavy kayaks or when the bracket is installed high on the wall. Most customers install angle brackets at mid-wall height (approximately 1.2–1.5m from the floor) for the most comfortable access. See our kayak storage guide for practical installation height guidance.

Weight Capacity — Quick Reference

All capacities assume panels are installed with InstallStrips. Face-screw installation (without InstallStrips) reduces these figures by approximately 75%.

• 254mm Shelf Bracket: 34kg per bracket, 68kg per pair (2 bracket minimum per shelf)
• 381mm Shelf Bracket: 34kg per bracket, 68kg per pair
• 254mm Angle Bracket: 68kg per pair (sold individually)
• 381mm Angle Bracket: 68kg per pair (sold individually)

Combining Brackets With Shelves

StoreWALL sells pre-cut floating shelves in both metal and PVC formats that are designed to fit the 254mm and 381mm bracket widths. Both shelf types are compatible with all bracket sizes and are available in multiple widths. You can also use your own custom-cut shelf board — the pre-drilled holes on each bracket accept standard shelf screws.

The key advantage of wall-bracket shelving on a slatwall system is repositionability. Every shelf can be raised, lowered, widened, or removed entirely without touching the wall. This is particularly useful as the contents of a garage change over time — a shelf configuration that worked when the kids were young looks very different when bikes are replaced by golf bags and camping gear.
