Wall Panels
Garage Wall Panels — Three Ranges, Every Application
All StoreWALL panels are solid PVC — waterproof, mould-resistant, and compatible with every CamLok accessory in the range. The choice between ranges comes down to load requirements, installation method, and finish preference.

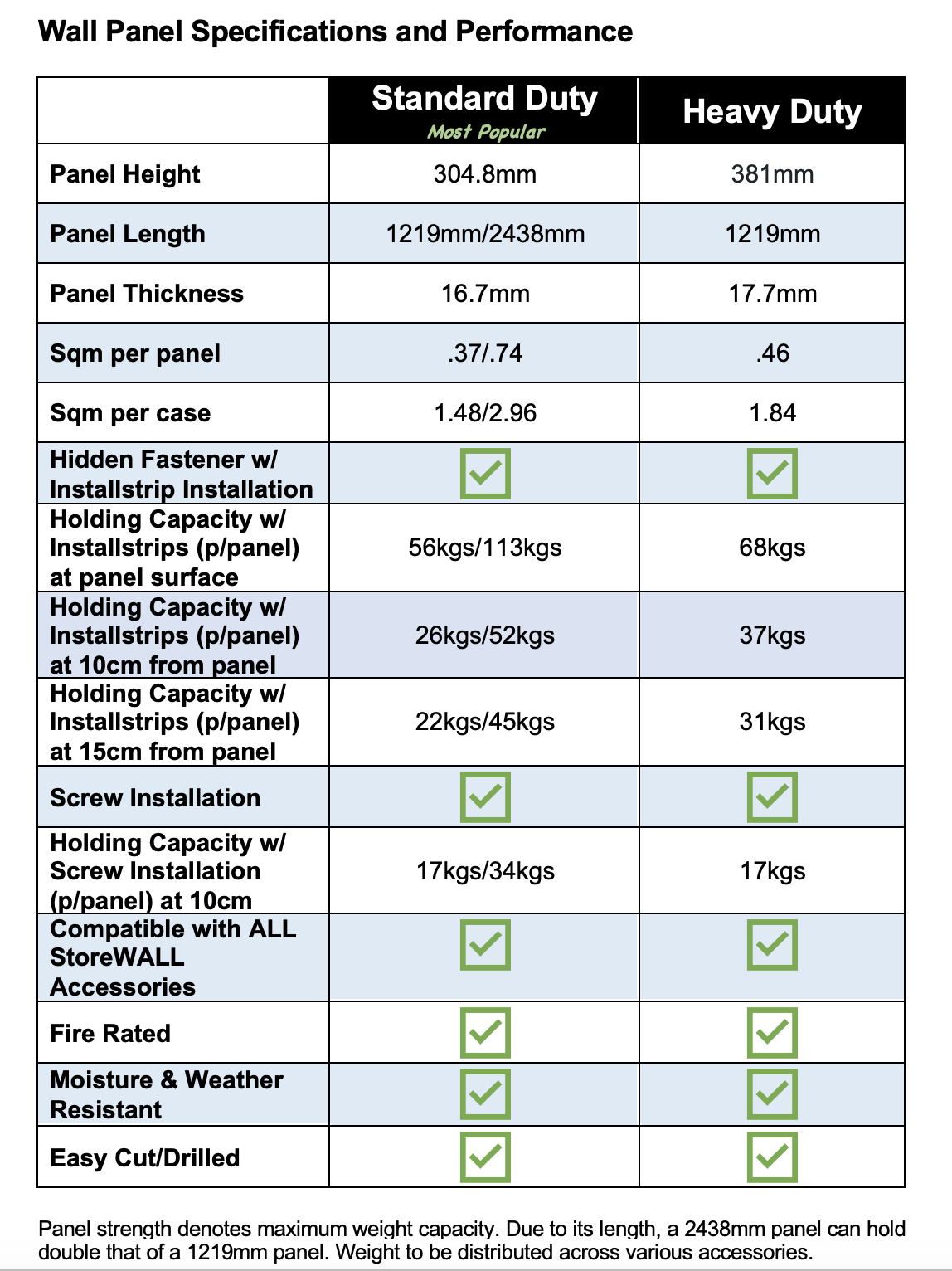

Compare the Ranges
|
|
|||
|
Material |
Solid extruded PVC |
Solid extruded PVC |
Compressed laminated PVC |
|
Height |
304mm |
381mm |
304mm |
|
Thickness |
16.7mm |
17.7mm |
16.7mm |
|
Lengths (AU) |
1.2m & 2.4m |
1.2m only |
1.2m only |
|
Carton covers |
1.48 / 2.96sqm |
1.85sqm |
1.48sqm |
|
Installation |
SD InstallStrips |
HD InstallStrips |
Face screws only |
|
Surface finish |
Solid colour / woodgrain |
Solid colour / woodgrain |
Decorative laminate |
|
Colours (AU) |
7 colours |
3 colours |
2 colours |
|
Who it's for |
Most homes — 80% choose this |
Heavier loads, workshops, gyms |
Premium finish / no InstallStrips |
InstallStrips — Why They Matter
- Load distribution: InstallStrips spread load across multiple fixing points along the panel length, reducing stress at any single point.
- Repositionability: panels installed on InstallStrips can be removed and repositioned cleanly. Face-screwed panels leave visible holes in the panel face.
- Finish: no screws visible through the panel — a cleaner result in any setting.
- 1 InstallStrip per 1.2m Standard Duty or Heavy Duty panel
- 2 InstallStrips per 2.4m Standard Duty panel
- MKE panels use face screws — not compatible with InstallStrips
- InstallStrips are sold separately — order the type that matches your panel range
- Most Australian garages: Standard Duty with InstallStrips. Widest colour range, available in 1.2m and 2.4m, handles everything from tool hooks to bikes.
- Heavy workshops, gyms or looking for maximum load: Heavy Duty with HD InstallStrips. 5 grooves per panel vs 4 on Standard Duty, taller panel height.
- Premium finish, face-screw installation: MKE Milwaukee Slatwall. Decorative laminate surface, consistent colour across production runs, no InstallStrips needed.
- Not sure how many panels you need? Use the Panel Calculator or contact us.
InstallStrips are galvanised metal strips that fix to your wall studs — the panel clicks onto them, hiding the fixings completely. They're why StoreWALL's weight capacities are as high as they are. Without them, all accessory weight ratings drop by approximately 75%.
Which Panel?
All three ranges use the standard 76mm groove pitch — fully compatible with MKE accessories, and any standard-pitch slatwall system.

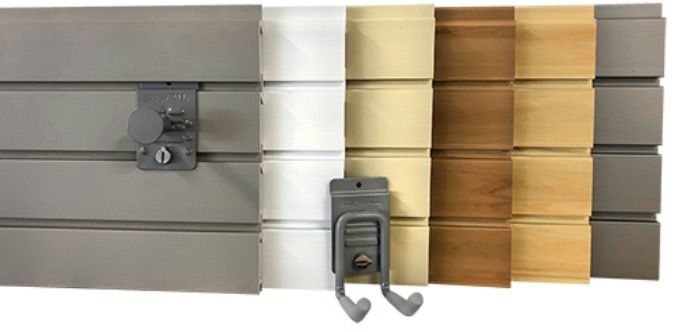

- Standard Duty (7 colours): Weathered Grey, Brite White, Barnwood Grey, Whitewood, Rustic Cedar, Graphite Steel, Black
- Heavy Duty (3 colours): Weathered Grey, Brite White, Global Pine
- MKE Milwaukee Slatwall: Whitewood, Blackwood
Colour options
Colour availability varies by range:
